Special ruler quilting foot, suitable for machines:
- Brother HF37
- Brother DS120, DS140
- Brother NV10, NV15, NV20, NV27, NV30, NV35, NV50, NV55, NV55FE
- Brother NV100, NV150, NV350, NV550
- Brother NV900, NV950, NV955
- Brother F400. F410, F420, F460, F480
- Brother NV1040, NV1100, NV1300, NV1800Q, NV2600,
- Note: Cannot be used with Brother VQ2, V5, V7, or XV models.
Instructions for use:
- Thread the needle. The automatic needle threader cannot be used once the foot is installed.
- Lower the feed dogs. If your machine does not allow this, the foot cannot be used. Remove the quick-release presser foot holder.
- Attach the foot directly to the presser bar. (Tighten only lightly; you will need to adjust the position based on the thickness of the material.)
- The needle must be centered within the foot.
- Place the material to be quilted under the foot; if it does not move smoothly, you must adjust the height of the foot.
- CAUTION! Do not move the needle position while the presser foot is raised.

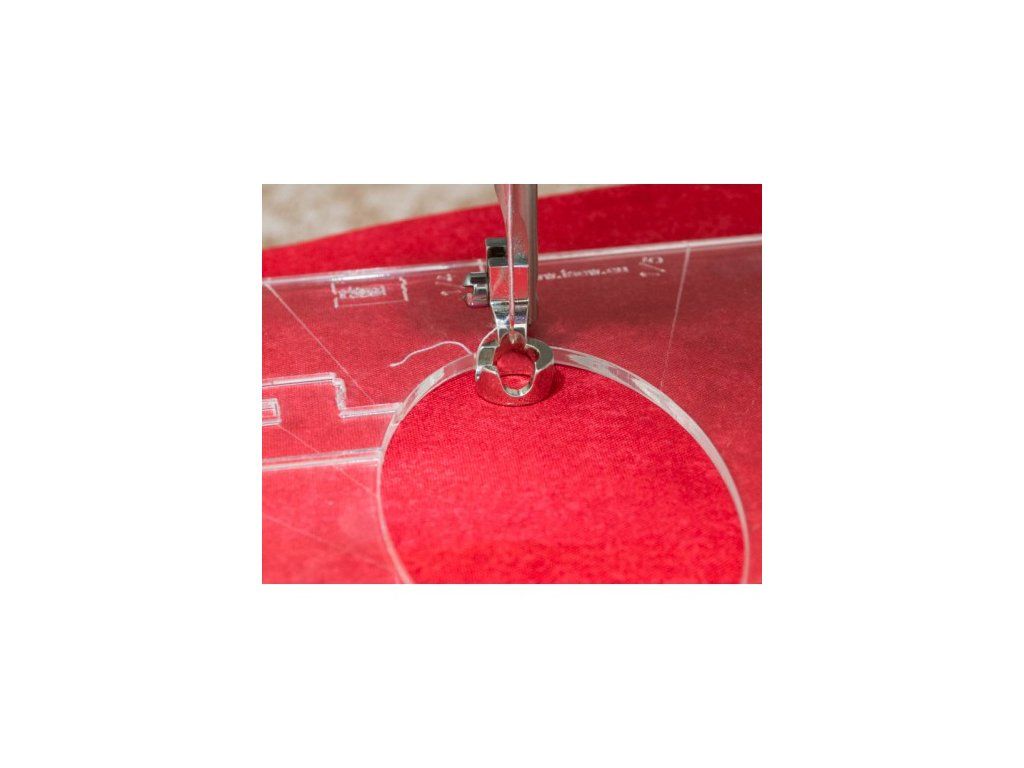

- Place the quilting ruler against the foot and begin quilting. Hold the ruler in a fixed position and move it along with the material, coordinating the movement with the sewing speed.
