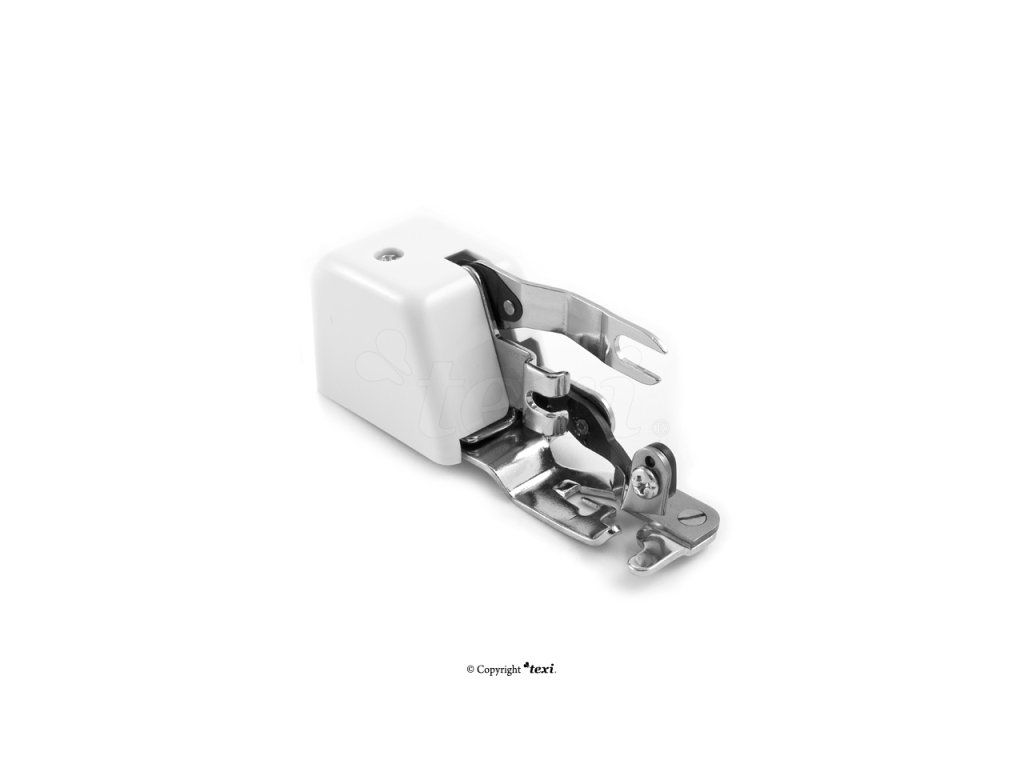

Overlock foot with side trim TEXI 0025

Product detailed description

Foot for sewing with an overlock stitch with subsequent trimming of the material. Ideal as an overlock. Useful when sewing multiple layers of fabric. Designed for most sewing machines such as Łucznik Klasa 800, Brother, Toyota, Huskystar, Pfaff, Singer, Bernina, Janome, Veronica, Lada, etc.

The overlock foot with a fabric trimming is used to clean the edges of the fabric with an overlock stitch. The foot also trims the fabric directly. It is suitable for all machines with an overlock stitch only up to an overlock stitch width of 4-5 mm. It is not compatible with the Janome MC6600 and Janome 7700, which have a different attachment thanks to the built-in ACCUFEED system.

Procedure for correct sewing:

Remove the original foot and the needle bar holder.
Place the trimming foot on the needle bar and screw it on.
Before sewing, you need to cut the fabric 1-2 cm so that you can place the fabric well on the foot.
The picture shows how to place the fabric. ATTENTION! The fabric is placed on the foot, not under the foot. Set the maximum stitch width to 4-5 mm, turn the handwheel and check that the needle does not pierce the foot. If so, you have set the stitch width to more than 5 mm.

Compatible machines:

• Janome Juno E1015, Juno J15, Juno E1019, 920, 415, 393, 419S, 423S
• Texi JOY 1301 PINK, JOY 1302 PURPLE, JOY 1303 GREEN, JOY 1304 BLUE, JOY 25, JOY 48
• Brother J14S, KD144S, KE14S, J17S, BQ17, RL417, BQ25, RL425, BN27, RH137, HF37
• Singer 8280, 8280P, 1408, 1409, 1507, 3210, 3221, 2259, 2250, 2263, 4411, 3321, 3232, 2273, 3323, 3223, 3229, 4423, 4432, 5511, 3337, 3342
• Husqvarna Viking E10, E20
• Lucznik Everyday, 2014 Ewa II, 910 Karina, 419 Milena, 512 Paulina, 2015 Zofia II, 2018 Polonia, 555 Laura, Tereza, 2005 Amelia II
• Veronica Prima 100, Optima 200, Komfort 303
• Toyota ECO 15A, ECO 15B, ECO 15CG, Super J15 White, Jeans 17C, Super J15 Black, Super J17 Red, Super J17 White, ECO 26A, ECO 26B, Super J34 Black, ECO 34A, ECO 34B, Super J26 Black, Super J26 White, Super J34 White, Power Fabriq 17
• Guzzanti GZ 110A, GZ 115, GZ 116
• Redstar R10, R07
