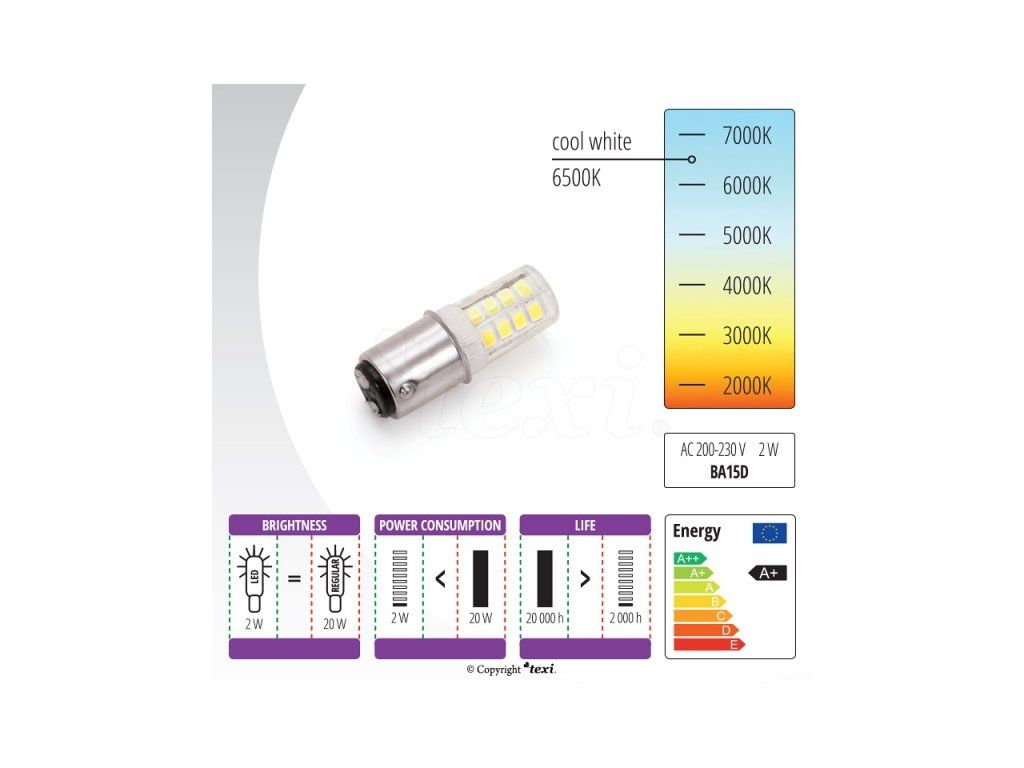

The TEXI LED BA15D bulb is a modern light source designed for household appliances such as sewing machines, refrigerators, etc. The bulb consumes only 2 W of power but delivers an output equivalent to a 20 W bulb. A standard bulb typically consumes and outputs 15 W; by switching, you not only save electricity but also benefit from superior lighting quality—it is brighter and offers a better spectrum, ensuring the fabric looks exactly as it should while sewing. Another advantage is that the diodes generate very little heat, eliminating the risk of burning out the bulb socket. Sometimes, when attempting to install a more powerful light source, an unsuitable bulb can damage the appliance's socket or melt an unsightly mark into the plastic housing.
Technical specifications:
- Power consumption: 2 W (light output equivalent to 20 W)
- Power supply: 220–230 V
- Light color: White (6500 K)
- Beam angle: 360°
- Lifespan: 20,000 hours
- Luminous efficacy: 80 lm/W
- Dimensions: 45 x 15 mm
- Certifications: CE, RoHS
- Energy class: A+
Compatible machines:
Janome MyStyle100, JR1012, IT1011, 2041s, 415, 423S, 525s, 6019QC a FM725 a overlocky Janome 134D, 304D, 534D, 634D, 204D, 990D a 744D a coverlocky 1000CP a 1000CPX
Pfaff 752, 1122, 4752, 4762 & 4772
Singer 6136, 14J334, 14U344, 14U354B, 14CG744, 14CG754, 14SH644, 14SH654, 14SH744, 14SH754 & PRO4D, 15-91, 66-16, 99K, 132Q, 201, 221, 222, 247, 301, 328K, 337, 347, 401, 401a, 403, 403A, 500, 503, 503A, 513, 537, 543, 600, 603, 604, 620, 620E, 625, 626, 628, 629, 630, 630E, 635, 636, 638, 639, 640E, 645, 646, 648, 649, 714, 717, 719, 724, 734, 774, 776, 750, 755, 756, 758, 770, 775, 778, 900, 1000 Futura, 1022, 1482, 1485, 1486, 1488, 1490, 1492, 2000, 2000A, 2102, 2105, 2106, 2108, 2110, 2112 , 2114, 2118, 2639, 2662, 4552, 4562, 4572, 4623, 5910, 5932, 6105, 6233, 6234, 6235, 6267, 6268, 6408, 6412, 6416, 6423, 7050, 9005, 9015, 9018, 9022 , 9027, 9032, 9044, 9110, 9113, 9117, 9124, 9130, 9133, 9134, 9137, 9143, 9323, 9334, 9408, 9410, 9416, 9420, 9430, 9432, 9444, 9900, 93220, 4325, 4610 , 4613, 4617, 4620, 4622, 4623, 5017, 5028, 5040, 507, 5102, 5107, 5123, 5127, 5417, 5430, 5502, 5505, 5508, 5522, 5525, 5528, 5605, 5610, 5705, 5802 , 5805, 5806, 5808, 5810, 5812, 5814, 5816, 5817, 5818, 5820, 5825, 5830, 5838, 6038, 6305, 6310, 6314, 6318, 6620, 7025, 57817, 57820, 57825, 9802-983 6, FM17, FM19, FM22, HD102, HD105 & HD110 CG-500 & CG-550
They may have these alternative spare part numbers: 358207-120, 000009009, 98-000009-80 / 300, 395710-05, 395 710-05, 3815, 72936, 15T7F, 3478, 194120-007, 194120, 777910-001, 777910 -002, 194120-019, 000009803, 6797, 200908106, 200908106
